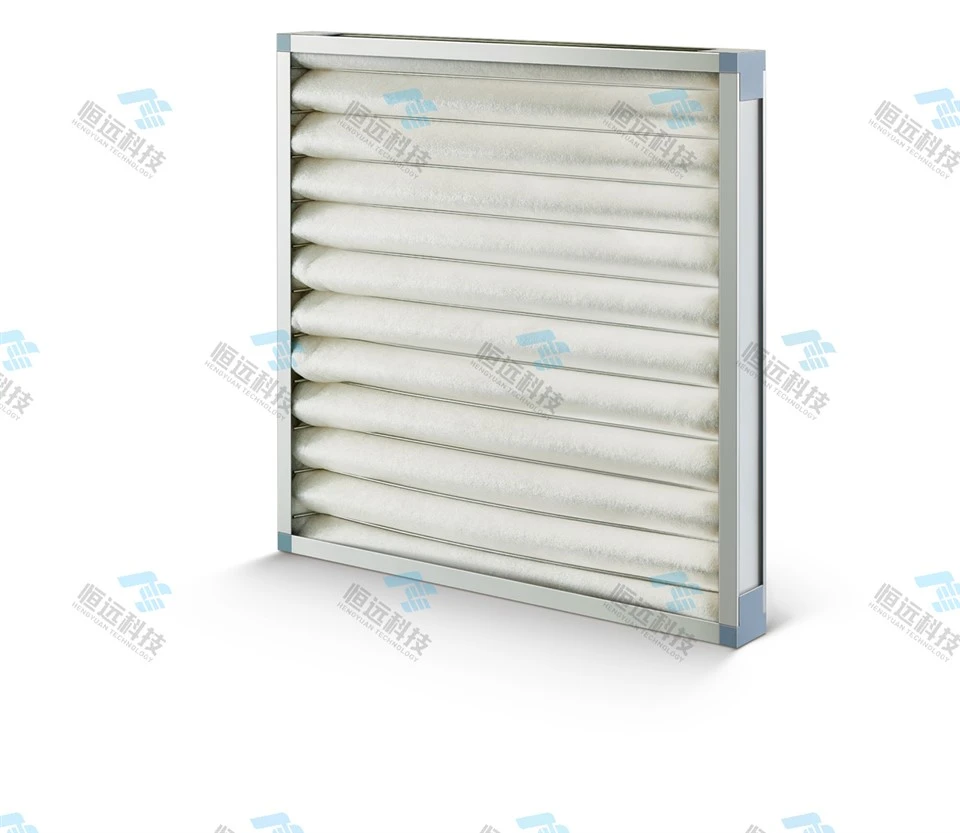

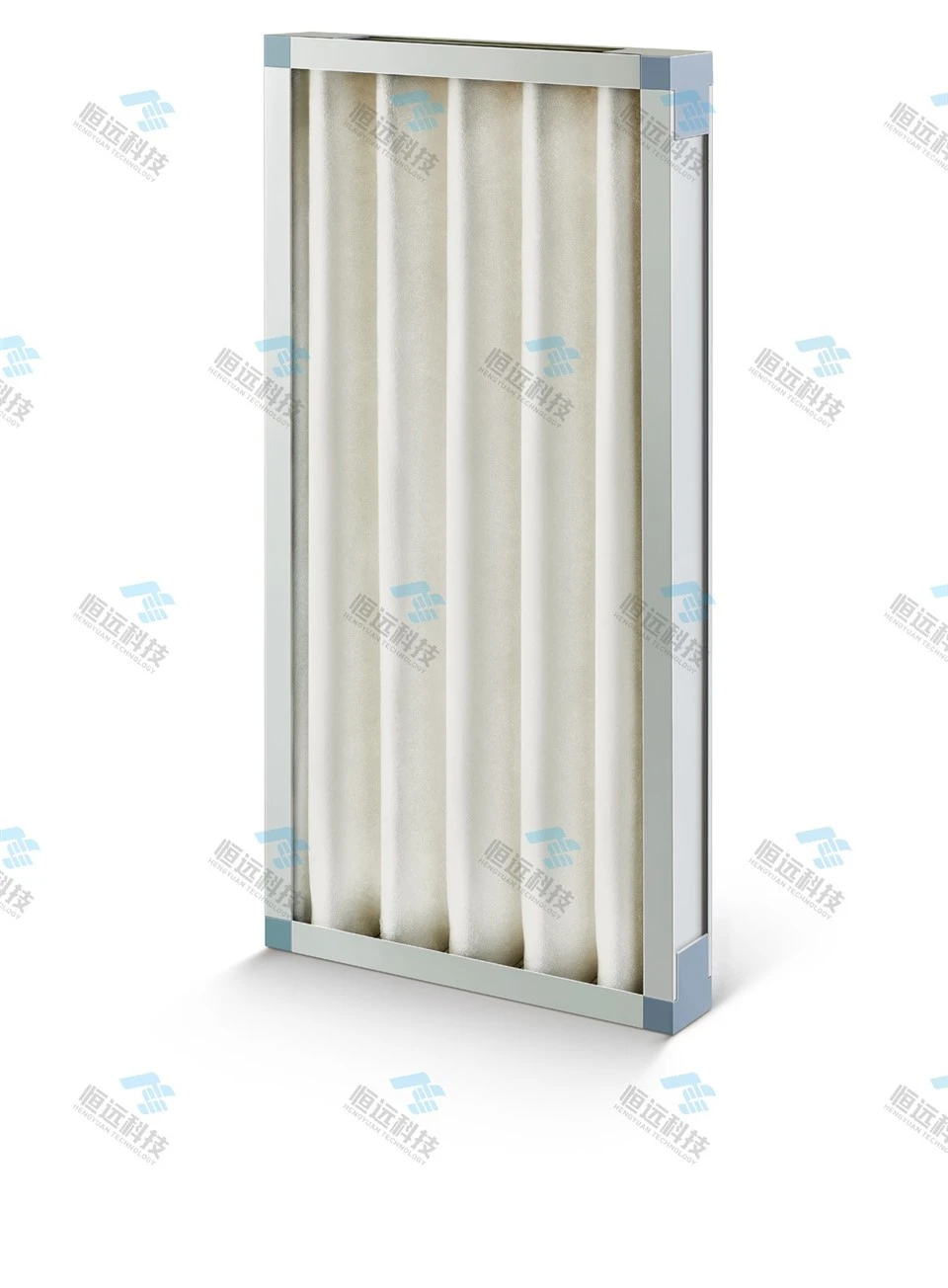

The manufacturing process of panel air filters is a complex and intricate one, encompassing several crucial steps as follows:
I. Raw Material Preparation
Filter Media Selection: Choosing suitable air filter materials such as synthetic glass fibers and fine filaments, which must possess excellent filtration performance and durability.
Other Materials: Preparing filter screens, support materials (e.g., aluminum alloy or galvanized steel), sealing materials, etc. All materials undergo rigorous quality inspections to ensure compliance with relevant standards.
II. Filter Media Preparation
Fiber Processing: Dispersing and mixing the selected fiber materials to ensure uniform distribution and optimal filtration efficiency.
Molding: Shaping the processed fiber materials into filter cartridges through specific processes. The shape and size of the cartridges are customized according to the design requirements of the filter.
III. Filter Screen Preparation
Processing: Manufacturing filter screens by processes such as steel wire mesh processing, stainless steel mesh bending, and plastic mesh injection molding to ensure sufficient strength and corrosion resistance.
IV. Plate Processing and Assembly
Plate Processing: Cutting and shaping plates of various materials to specified dimensions and quantities, such as those used for support frames and filter frames.
Flanging and Welding: Cutting and flanging the plate materials, then welding the flanged parts into fixed shapes to form the filter's framework.
Layering and Sealing: Placing support materials within the flanged plates and layering the filter materials into the filter, ensuring the cartridges are securely fixed and well-sealed.
Assembly: Assembling the filter media, filter screens, support materials, and sealing materials into a complete air filter according to a specific sequence and process requirements.
V. Inspection and Packaging
Quality Inspection: Conducting rigorous quality inspections on the produced air filters, including tests for filtration efficiency, sealing performance, structural strength, etc., to ensure product quality meets relevant standards and customer requirements.
Packaging and Storage: Packaging and storing the qualified products for subsequent transportation and sales.
VI. Maintenance and Servicing
Although not directly part of the manufacturing process, maintenance and servicing are crucial for ensuring the long-term stable operation of the filters. Therefore, manufacturers typically provide maintenance manuals or guidance, including recommendations for regular cleaning or replacement of filter cartridges and checking filtration efficiency.
In summary, the manufacturing process of panel air filters involves multiple stages and intricate techniques, requiring strict control over the quality and process requirements of each step to ensure the performance and reliability of the final product.
