introduction

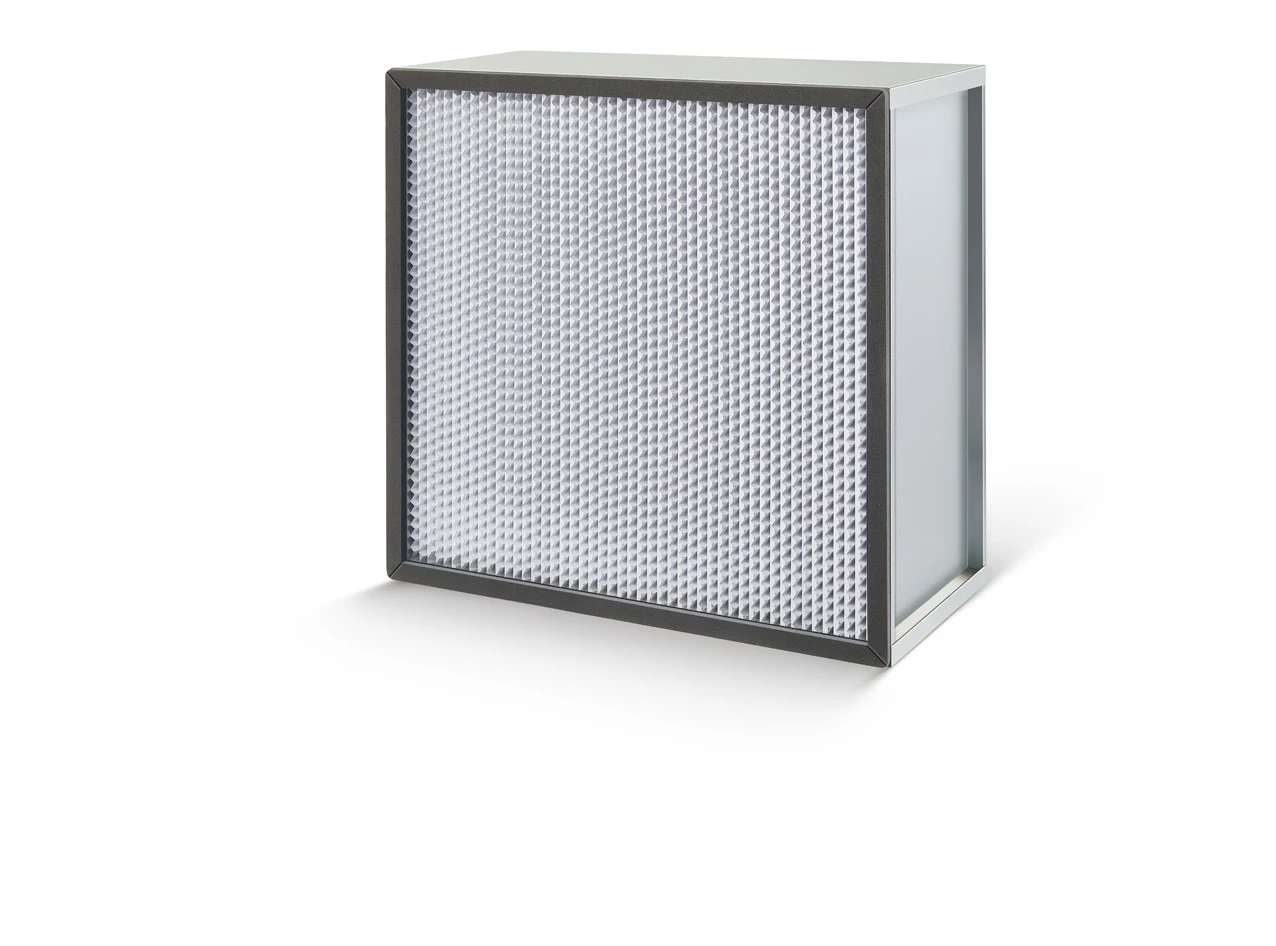

The HGB Partitioned High-Efficiency Particulate Air Filter (often abbreviated as HEPA with partitions or simply HGB HEPA Filter) is an advanced air purification device designed to capture and remove tiny particles from the air. Compared to its non-partitioned counterpart, the partitioned design utilizes internal barriers to separate the filter media into multiple independent channels or chambers. This structure reinforces the filter's structural integrity, potentially impacting airflow uniformity and filtration efficiency to a certain extent, but overall maintaining its high-efficiency filtration performance.
characteristics
- High-Efficiency Filtration: Effectively filters out particles with diameters greater than or equal to 0.3 microns from the air, including dust, pollen, bacteria, and viruses (some models with special treatments for viruses). Its filtration efficiency typically exceeds 99.97%.
- Structural Stability: The partitioned design enhances the overall structural strength of the filter, making it more stable and reliable during installation and operation, suitable for various complex environments.
- Low Resistance: Through optimized design and material selection, it reduces the resistance encountered by air as it passes through the filter, contributing to energy savings and extended equipment lifespan.
- Ease of Maintenance: Most HGB Partitioned High-Efficiency Particulate Air Filters are designed with replaceable filter cartridges, facilitating regular maintenance and replacement by users, thereby minimizing maintenance costs and downtime.
- Widespread Applications: Widely used in environments requiring high cleanliness levels, such as hospital operating rooms, pharmaceutical factories, clean rooms in electronics factories, laboratories, precision instrument manufacturing workshops, as well as HVAC systems in commercial buildings like office buildings, shopping malls, and airports.
Model, Size And Technical Parameters
|
Filter model |
Overall dimensions (mm) |
Rated air flow (m3/h) |
Initial resistance (Pa) |
Efficiency (@0.3μm) |
Dust capacity (g) |
|
HGB-4A |
320*320*220mm |
400m3/h |
≤220Pa |
≥99.99 |
350 |
|
HGB-5A |
350*350*220mm |
500m7h |
400 |
||
|
HGB-10A |
610*610*150mm |
1000m3/h |
600 |
||
|
HGB-10A |
484*484*220mm |
1000m3/h |
600 |
||
|
HGB-13A |
820*600*150mm |
1300m3/h |
750 |
||
|
HGB-15A |
726*484*220mm |
1300m3/h |
750 |
||
|
HGB-15A |
915*610*150mm |
1500m3/h |
800 |
||
|
HGB-15A |
630*630*220mm |
1500m3/h |
900 |
||
|
HGB-20A |
968*484*220mm |
1500m3/h |
1200 |
||
|
HGB-20A |
1220*610*l50mm |
2000m3/h |
1200 |
||
|
HGB-23A |
945*630*220mm |
2300m3/h |
1400 |
||
|
HGB-30A |
1260*630*220mm |
3000m3/h |
1800 |
Note: According to user requirements, different specifications and models of filters can be customized.
