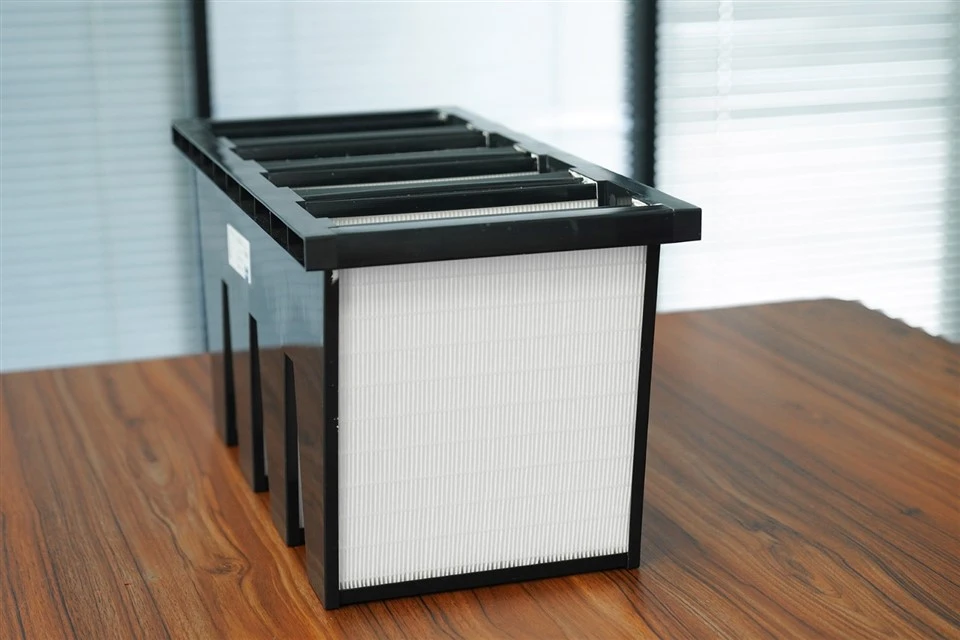

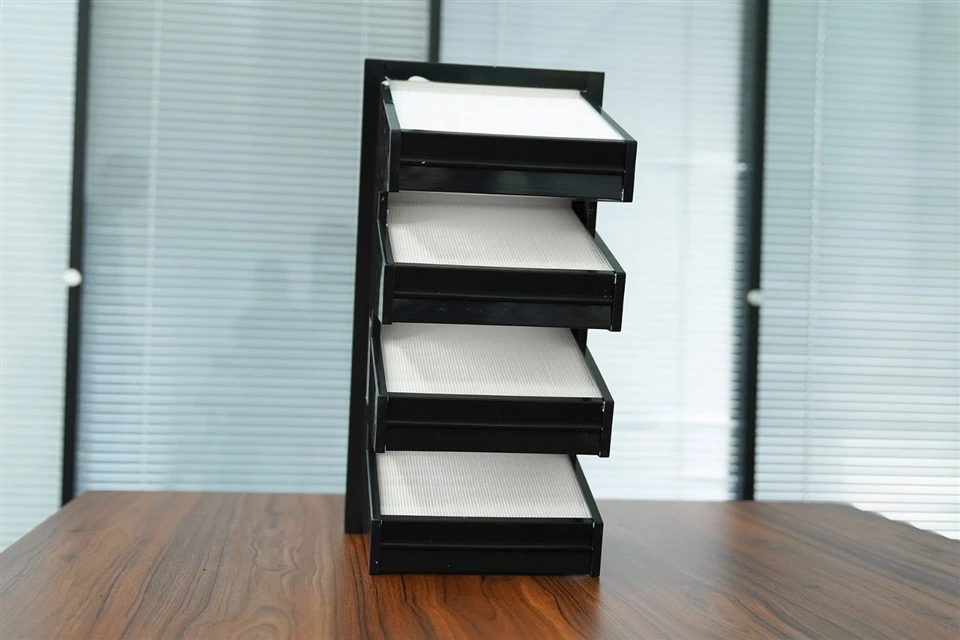

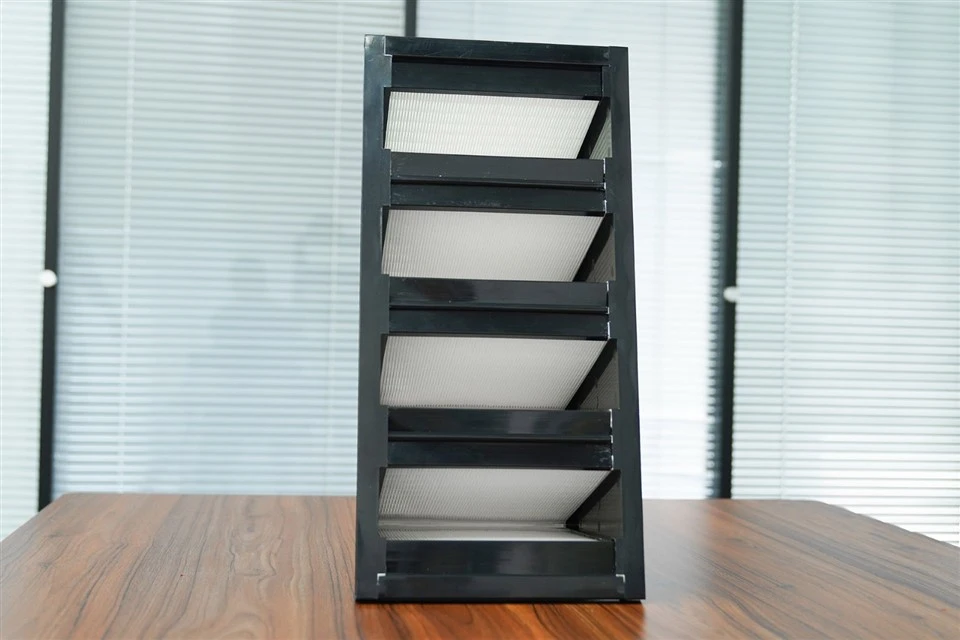

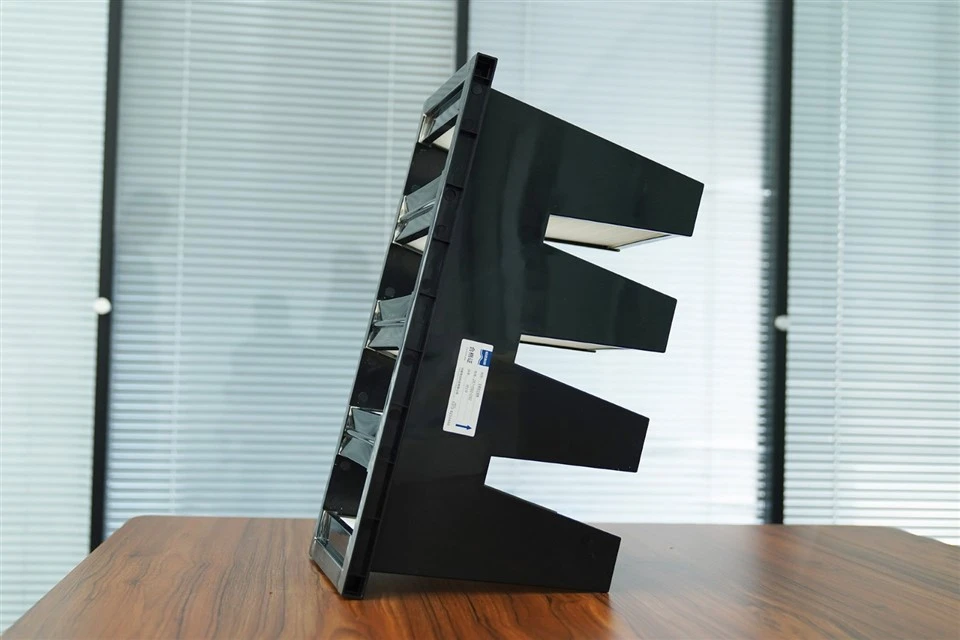

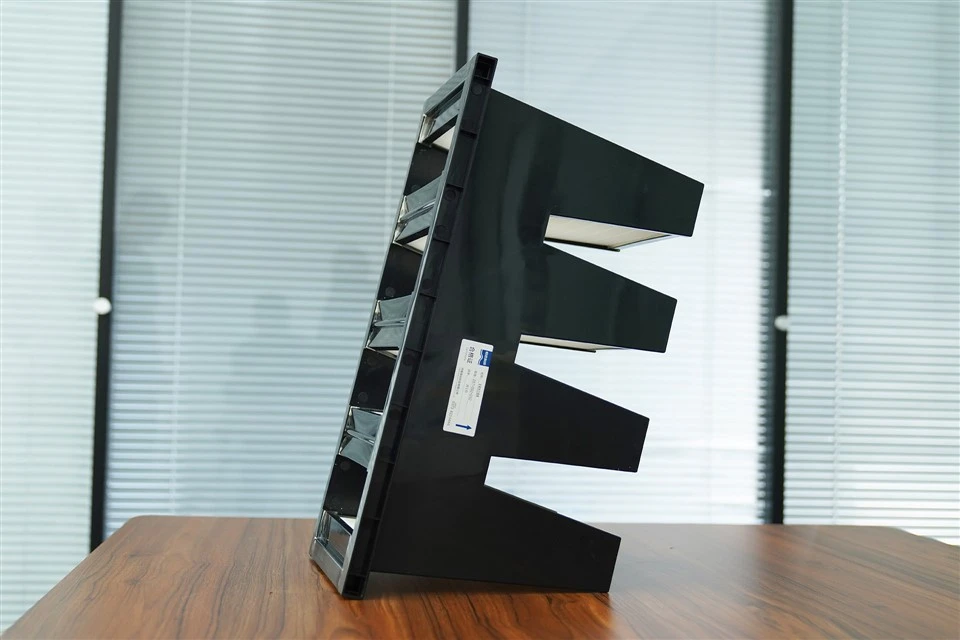

Analysis of the High Efficient Large Dust Holding Capacity V-Type Cell Ventilation Combined Filter
I. Key Product Features
High-Efficiency Filtration Performance
HEPA-Grade Filtration: Typically employs H13 or H14 filter media, achieving ≥99.97% filtration efficiency for PM0.3 and finer particles. Suitable for high-cleanliness environments such as cleanrooms and hospital operating theaters.
V-Type Structural Design: Increases filter media surface area by 30%~50% compared to flat-panel filters, reducing airflow resistance and extending filter lifespan.
Large Dust Holding Capacity Design
Deep Pleat Technology: Pleat depth reaches 60~80mm, offering 2~3 times higher dust holding capacity than conventional filters and reducing replacement frequency.
Progressive Density Structure: Looser outer layer (intercepts large particles) and denser inner layer (captures fine particles), prolonging overall service life.
Optimized Ventilation Combination
Low-Resistance Air Duct: Matched design of V-type filter and fan ensures resistance ≤250Pa under rated airflow, lowering energy consumption.
Modular Combination: Supports parallel connection of multiple filters to meet varying airflow demands (e.g., 5,000~10,000m³/h per module).
II. Example Technical Parameters
| Parameter | Typical Value | Notes |
|---|---|---|
| Filtration Efficiency (MPPS) | ≥99.97% (H14) | Complies with EN1822 standard |
| Initial Resistance | ≤180Pa (rated airflow) | Energy-efficient design |
| Dust Holding Capacity | 800~1,200g/m² (ISO A2 dust) | Far exceeds standard filters |
| Operating Temperature | -20°C~80°C | Withstands high/low temperatures |
| Humidity Tolerance | ≤95%RH (non-condensing) | Adapts to high-humidity conditions |
III. Application Scenarios
Industrial Sector
Pharmaceutical/Food Workshops: Removes dust and microorganisms to meet GMP requirements.
Electronics Manufacturing: Purifies cleanrooms to prevent product contamination.
Commercial Buildings
Large Malls/Office Buildings: Front-end filtration for central HVAC systems, reducing maintenance costs.
Hospitals: Ventilation systems for operating theaters and ICUs to ensure air cleanliness.
Special Environments
Nuclear Power Plants/Laboratories: Filters radioactive particles or toxic dust.
Ships/Subways: Anti-vibration and corrosion-resistant ventilation designs.
IV. Comparison with Traditional Filters
| Metric | Traditional Flat-Panel Filter | V-Type Combined Filter |
|---|---|---|
| Dust Holding Capacity | 300~500g/m² | 800~1,200g/m² |
| Replacement Cycle | 3~6 months | 12~18 months (varies by conditions) |
| Initial Resistance | 200~250Pa | ≤180Pa |
| Footprint | Larger (single-layer layout) | Compact (multi-layer V-type structure) |
V. Selection Recommendations
Based on Airflow Demand:
Small Systems (≤5,000m³/h): Single V-type filter module.
Large Systems (>5,000m³/h): Parallel connection of multiple modules; verify air duct uniformity.
Based on Dust Characteristics:
Fibrous Dust (e.g., wood shavings): Select smooth-surface filter media to reduce clogging.
Oily Particles (e.g., kitchen exhaust): Add pre-filtration layer or use oil-resistant media.
Maintenance Cost Considerations:
High dust-holding capacity filters have higher initial costs but save on labor and downtime costs in the long run.
VI. Maintenance and Precautions
Regular Monitoring:
Install differential pressure sensors; replace filters when resistance exceeds 150% of the initial value.
Replacement Procedure:
Shut down the system before replacement to avoid dust leakage; dispose of spent filters as hazardous waste.
Compatibility Verification:
Ensure filter dimensions match the filter frame to prevent air leakage.
Summary
The High Efficient Large Dust Holding Capacity V-Type Cell Ventilation Combined Filter achieves a balance of high filtration efficiency, long lifespan, and low energy consumption through structural optimization and material upgrades. It is particularly suitable for scenarios with stringent air quality requirements and sensitivity to maintenance costs. Selection should consider actual operating conditions and focus on long-term operational costs.
