Analysis of Aluminum-Frame Medium-Efficiency F7/F8/F9 HVAC Panel Filters for Air Conditioning Dust Removal and Purification
Core Functions and Applications
Medium-Efficiency Filter Positioning:
F7-F9 grade filters belong to the medium-efficiency filtration stage in HVAC systems, typically installed after primary filters (G3-G4) and before high-efficiency filters (H10-H14). They intercept 1-10μm particles (e.g., dust, pollen, smoke) to protect high-efficiency filters and extend their lifespan.
Typical Applications:
Commercial buildings (offices, shopping malls)
Public venues (hospitals, schools)
Industrial environments with stringent cleanliness requirements (pharmaceuticals, electronics)
HVAC systems (e.g., Air Handling Units [AHU], Make-Up Air Units [MAU])

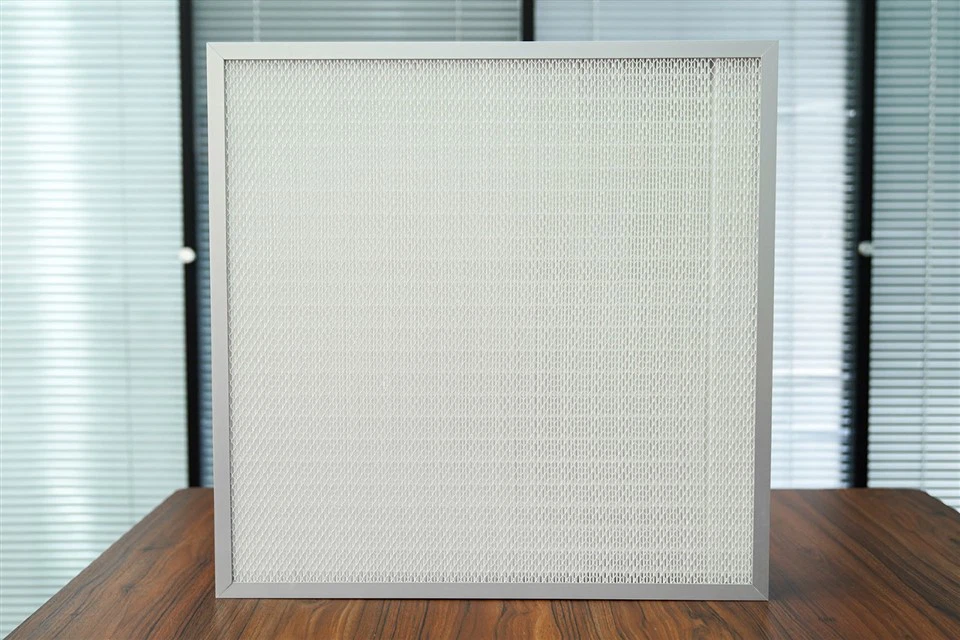

Features of Aluminum-Frame Medium-Efficiency Panel Filters
| Characteristic | Description |
|---|---|
| Frame Material | Aluminum alloy frame, corrosion-resistant, lightweight, suitable for humid or high-humidity environments. |
| Filter Media Type | Synthetic fibers (e.g., polyester), enhanced adsorption via electrostatic electret technology. |
| Filtration Efficiency | F7 (EN779:2012 standard): 60-70% @ 1-5μm F8: 80-90% @ 1-5μm F9: 90-95% @ 1-5μm |
| Dust Holding Capacity | Higher than primary filters, typically 200-400g/m² (F7) to 400-600g/m² (F9). |
| Resistance | Initial resistance: ~30-50Pa (F7) to 50-80Pa (F9); recommended final resistance ≤250Pa. |
| Installation Method | Panel structure with a plug-in design for easy replacement and maintenance. |
Comparison and Selection Recommendations for F7/F8/F9 Grades
| Grade | Efficiency (EN779:2012) | Recommended Applications |
|---|---|---|
| F7 | 60-70% @ 1-5μm | General commercial buildings, pre-filtration for ventilation systems, or environments with moderate cleanliness requirements. |
| F8 | 80-90% @ 1-5μm | Hospitals, schools, pharmaceutical plants, or as a protective layer for high-efficiency filters. |
| F9 | 90-95% @ 1-5μm | Electronics factories, cleanrooms, or scenarios requiring strict PM2.5 control. |
Selection Recommendations:
Choose F7 if the primary filtration is effective and medium-efficiency requirements are low.
Opt for F8 to balance efficiency and resistance (e.g., hospital operating rooms).
Select F9 for pre-filtration close to high-efficiency standards (e.g., electronics factories).
Advantages and Limitations
Advantages:
Cost-Effective: Lower cost than high-efficiency filters but significantly improves air quality.
Easy Maintenance: Lightweight aluminum frame, replaceable media, or complete unit replacement.
Strong Compatibility: Fits most HVAC systems; upgradeable without modification.
Limitations:
Unable to intercept particles <0.3μm (requires high-efficiency filters).
Media may absorb moisture in high-humidity environments; requires regular inspection.
Maintenance and Replacement Recommendations
Monitoring Indicators:
Differential pressure gauge readings (replace when initial resistance rises to final resistance).
Visual inspection of media surface dust accumulation (replace immediately if damaged or severely clogged).
Replacement Cycle:
Normal environments: 3-6 months.
High-pollution environments: 1-3 months.
Precautions:
Shut down the system during replacement to avoid unfiltered air leakage.
Dispose of waste media per environmental regulations (may contain adsorbed pollutants).
Case Studies
Hospital HVAC System Upgrade:
Original system used only primary filters, causing frequent high-efficiency filter clogging. After adding F8 aluminum-frame medium-efficiency filters, high-efficiency filter lifespan doubled, and system energy consumption decreased by 15%.
Electronics Factory Cleanroom:
Using F9 medium-efficiency filters as pre-filtration for high-efficiency filters stabilized PM2.5 concentration ≤35μg/m³ and improved product yield by 5%.
Summary and Recommendations
Recommended Scenarios:
Commercial/industrial HVAC systems requiring a balance between filtration efficiency and cost.
Environments with high air quality requirements but not needing cleanroom standards.
