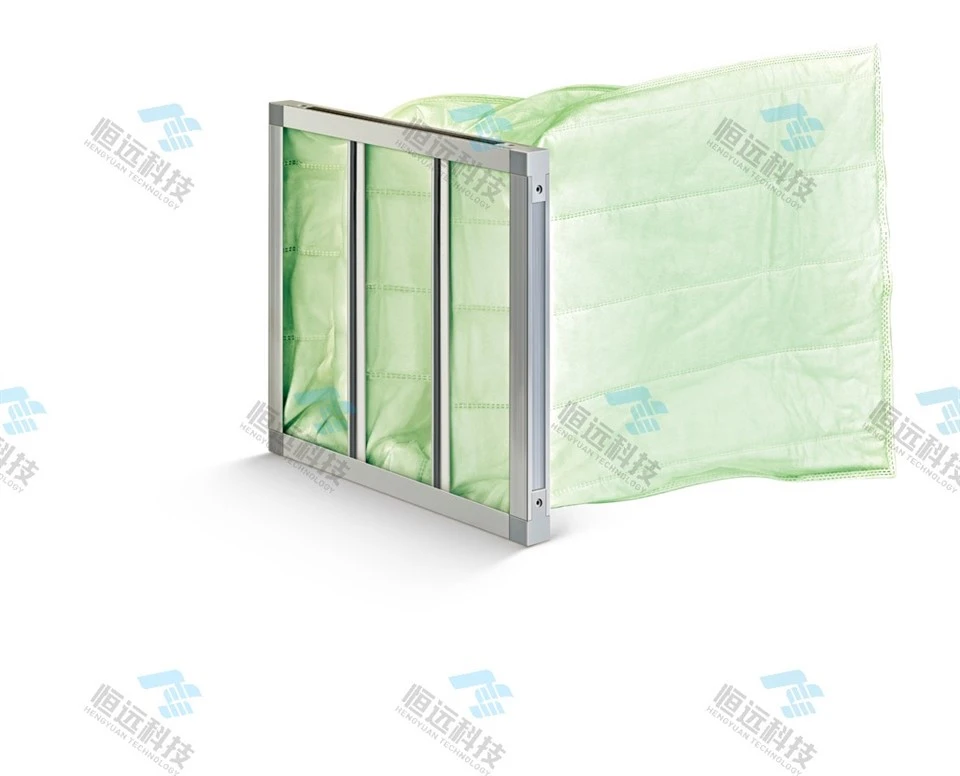

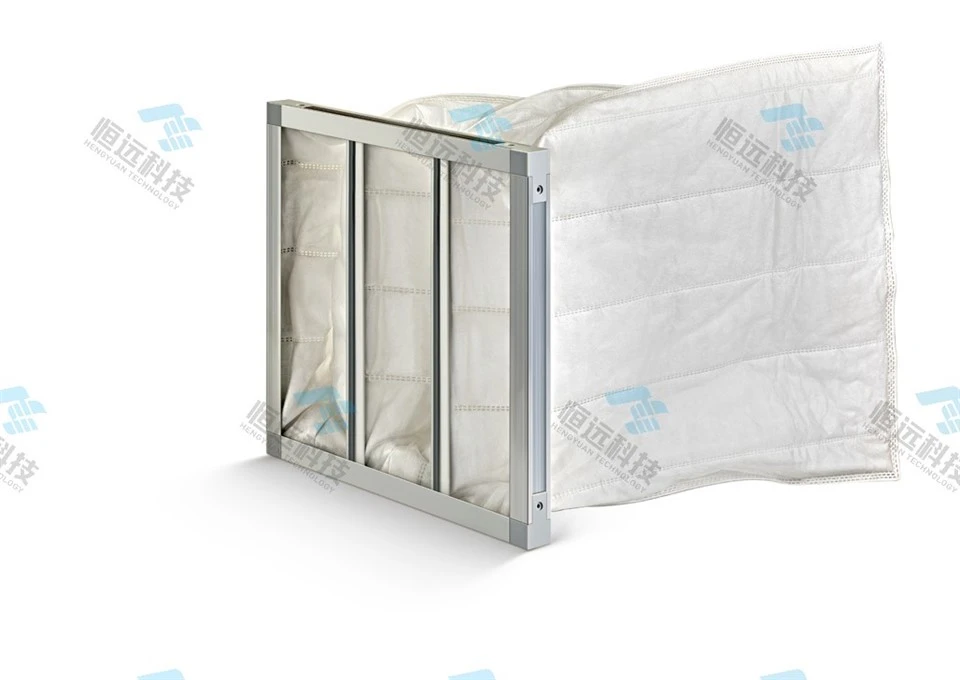

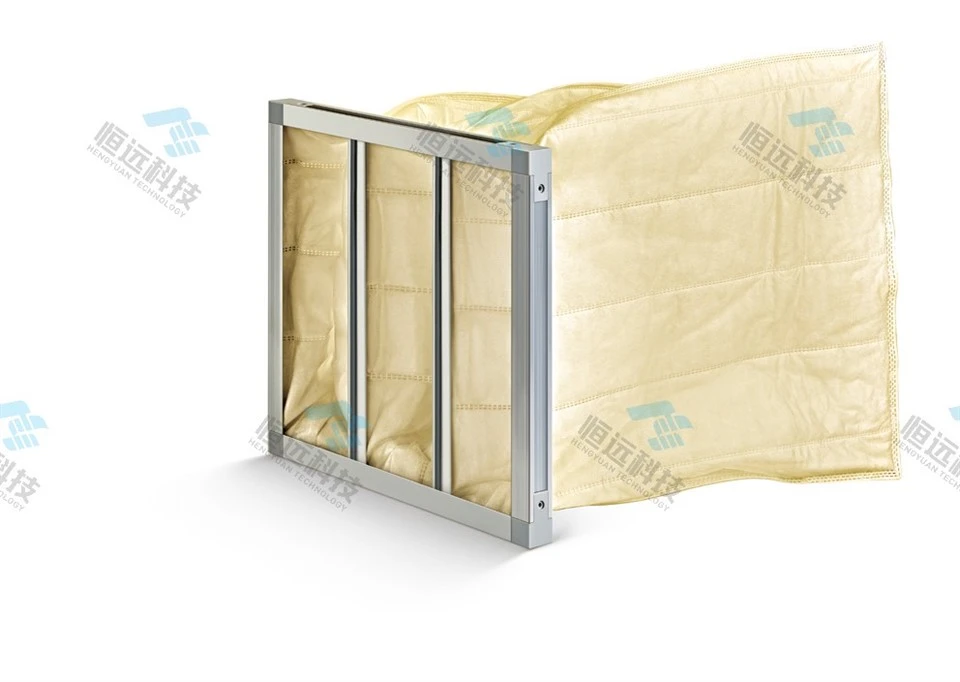

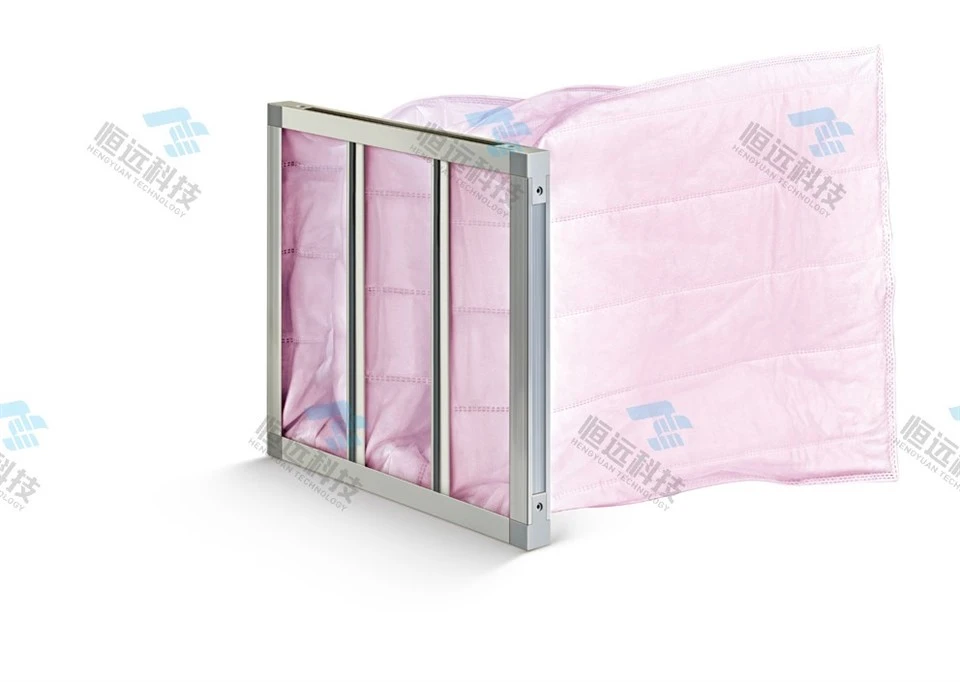

Medium Efficiency Bag Type Air Filter (F5-F8 Low Resistance & High Airflow Reusable Type)
Products Description
Performance and characteristics:
Core Advantages
Classified as Medium Efficiency (F5-F8), it delivers average filtration efficiencies of 64% (F5), 70% (F6), 85% (F7), and 95% (F8) via the colorimetric method.
Embodying Low Resistance & High Airflow performance, it ensures minimal airflow restriction while handling large air volumes, reducing energy consumption for air handling systems.
With a Reusable design, it can be used multiple times, offering a long service life and lowering long-term operational costs.
Function & Application
As an Air Filter for HVAC systems, it is widely applied in pharmaceutical, electronic, and food industries for general air conditioning and ventilation. It also serves as effective intermediate filtration in air conditioning systems, removing contaminants to maintain air cleanliness and system reliability.
4. Application Scenarios
This Medium Efficiency Bag Type Air Filter is ideal for scenarios requiring balanced filtration performance and airflow efficiency. In pharmaceutical, electronic, and food industries, it supports clean air environments for production and operations. In air conditioning systems, it serves as intermediate filtration, ensuring air quality while leveraging its Low Resistance & High Airflow and Reusable features to optimize system performance and reduce maintenance costs.
Model, Size and Technical Parameters
| Filter model | Overall dimensions (mm) | Rated air flow (m³/h) | Initial resistance (Pa) | Efficiency (class) (MPPS) | Bag Quantity |
|---|---|---|---|---|---|
| HDC/5-13 | 490×287×600 | 1300 | 50-70Pa | F5/F6 | 5 |
| HDC/5-22 | 490×490×600 | 2200 | 50-70Pa | F5/F6 | 5 |
| HDC/6-16 | 592×287×600 | 1600 | 50-70Pa | F5/F6 | 6 |
| HDC/6-27 | 592×490×600 | 2700 | 50-70Pa | F5/F6 | 6 |
| HDC/6-32 | 592×592×600 | 3200 | 50-70Pa | F5/F6 | 8 |
| Filter model | Overall dimensions (mm) | Rated air flow (m³/h) | Initial resistance (Pa) | Efficiency (class) (MPPS) | Bag Quantity |
|---|---|---|---|---|---|
| HDC/5-13 | 490×287×600 | 1300 | 90-130Pa | F7/F8 | 5 |
| HDC/5-22 | 490×490×600 | 2200 | 90-130Pa | F7/F8 | 5 |
| HDC/6-16 | 592×287×600 | 1600 | 90-130Pa | F7/F8 | 6 |
| HDC/6-27 | 592×490×600 | 2700 | 90-130Pa | F7/F8 | 6 |
| HDC/8-32 | 592×592×600 | 3200 | 90-130Pa | F7/F8 | 8 |
HDC7/8 Series Technical Parameters (Medium Efficiency, F7/F8)
Note: According to user requirements, different specifications and models of filters can be customized.
Certificate
Company Profile
About us
Henan Hengyuan Technology Co., Ltd. is located in Nanpu Juren Road, Changyuan City, Henan Province, enjoying convenient transportation and a beautiful environment. With modern technical equipment and strong economic strength, we specialize in the R&D, manufacturing and sales of various specifications of primary, intermediate, sub-high efficiency and high efficiency air filters, precision equipment dust screens, fresh air/return air screens, activated carbon filters, dust removal series, liquid filters, other purification equipment and laminar flow purification room products.
Our products are widely used in electronics, photovoltaic, healthcare, biopharmaceuticals, food & beverage, automotive manufacturing, rail transit and many other fields. Adhering to the philosophy of "quality first, integrity, win-win cooperation and excellence", we provide high-quality services to customers and are committed to being an overall filtering solution provider, contributing to a living environment with clear water and blue sky.
Exhibitions Participated
Production Environment
workshop&equipment
Packaging & Shipping
Prior to logistics transportation, we will implement multiple procedures to inspect and package the products, so as to ensure that every product is delivered to customers with excellent quality.
Shipping
1. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
2. Customers specifying freight forwarders or negotiable shipping methods!
Delivery time
15-30 days after receiving your payment or order confirmation
