Advantages
High Efficiency: The SP series rotating pipeline filter utilizes the principle of efficient centrifugal filtration, enabling rapid liquid filtration to meet the demands of production lines.
Ease of Operation: The equipment features a one-click operation, simplifying the operational process and enhancing convenience. Additionally, the filter's internal structure is straightforward, facilitating maintenance and cleaning.
Durability: Crafted from high-quality materials, the SP series rotating pipeline filter boasts excellent wear resistance, corrosion resistance, and a long service life.
Strong Adaptability: Capable of customization, the SP series rotating pipeline filter can accommodate filters of varying specifications and materials, tailored to the needs of diverse industries and their unique filtering requirements.
Main Features

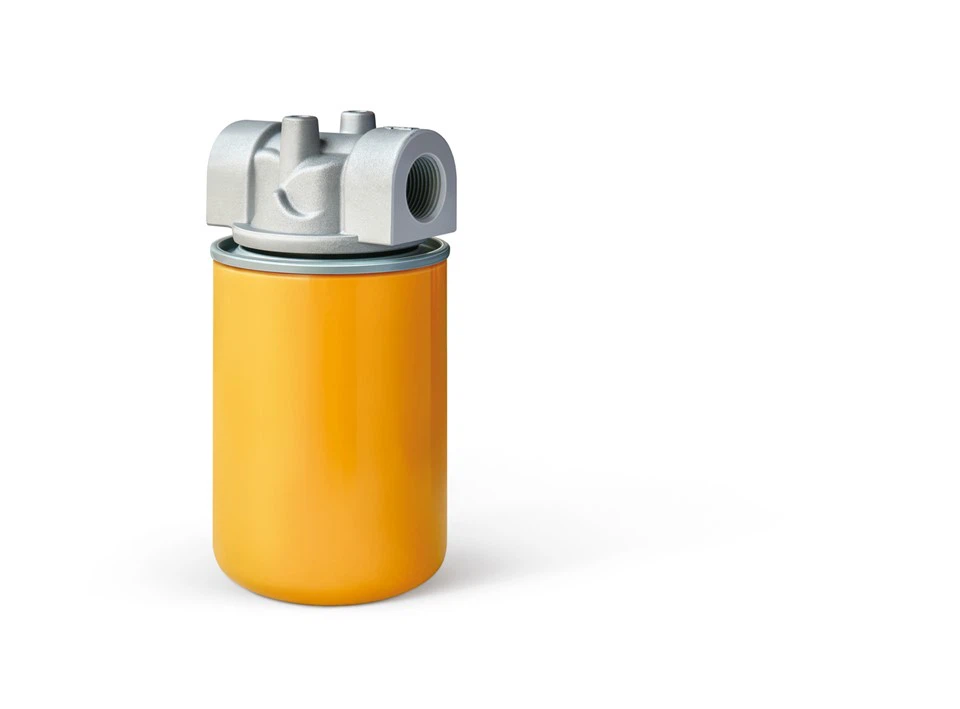

Equipped with an aluminum alloy filter head.
Maximum working pressure: 0.7MPa.
Temperature range: -30°C to 90°C.
The filter head is equipped with a hole for installing a contamination or blockage indicator, allowing for easy monitoring of the filter element's condition.
Note: Filters of different specifications and models can be customized according to customer requirements.
Model And Technical Parameter
|
Filter model |
Max. press. (MPa) |
Blow up press. (Mpa) |
By-pass setting' (Mpa) |
Max. Flow (L/min) |
Filtr. (μm) |
Weight (kg) |
Screw |
Filter head model |
Filter type |
||
|
Return |
absorption |
Return |
absorption |
||||||||
|
SP-06X10 |
0.7 |
2.0 |
0.25 |
60 |
20 |
10 |
0.76 |
R3/4 |
SPH-06 |
SPH-06-J |
SPX-06X10 |
|
SP-06X25 |
70 |
25 |
25 |
0.76 |
R3/4 |
SPX-06X25 |
|||||
|
SP-08X10 |
60 |
20 |
10 |
0.76 |
R1 |
SPH-08 |
SPH-08-J |
SPX-08X10 |
|||
|
SP-08X25 |
70 |
25 |
25 |
0.76 |
R1 |
SPX-08X25 |
|||||
|
SP-10X10 |
144 |
42 |
10 |
1.88 |
R1% |
SPH-10 |
SPH-10-J |
SPX-10X10 |
|||
|
SP-10X25 |
150 |
50 |
25 |
1.88 |
R1% |
SPX-10X25 |
|||||
|
SPA-10X10 |
200 |
58 |
10 |
2.70 |
R1% |
SPAX-10X10 |
|||||
|
SPB-10X10 |
320 |
80 |
10 |
3.0 |
R1% |
SPBX-10X10 |
|||||
