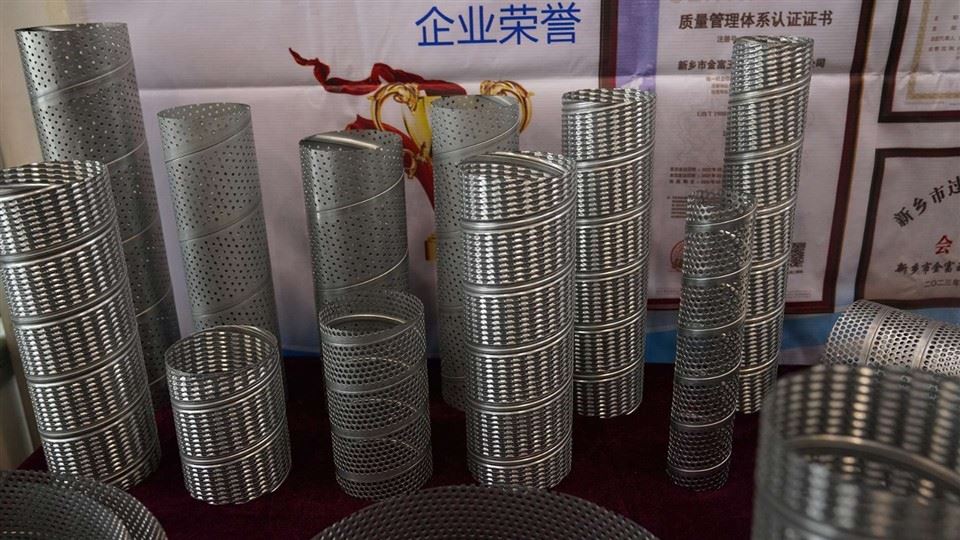

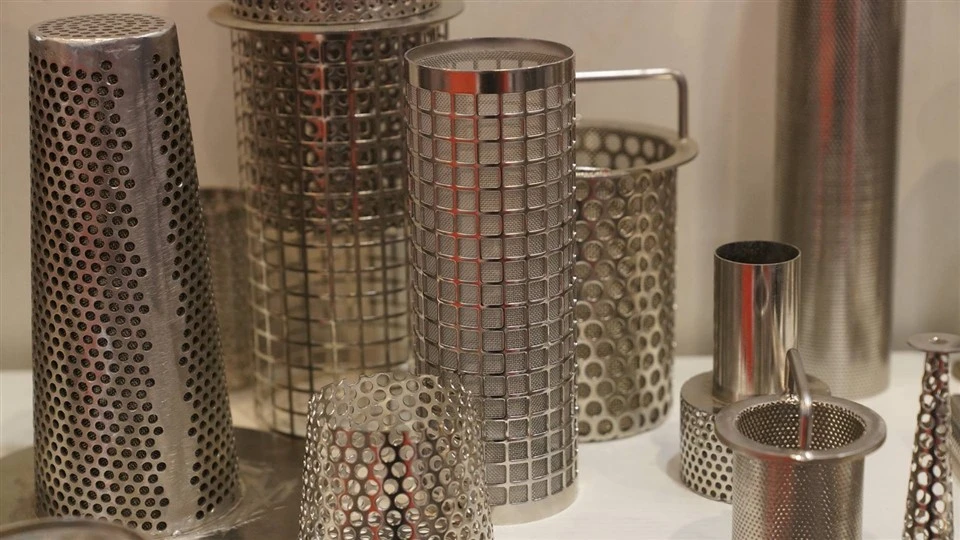

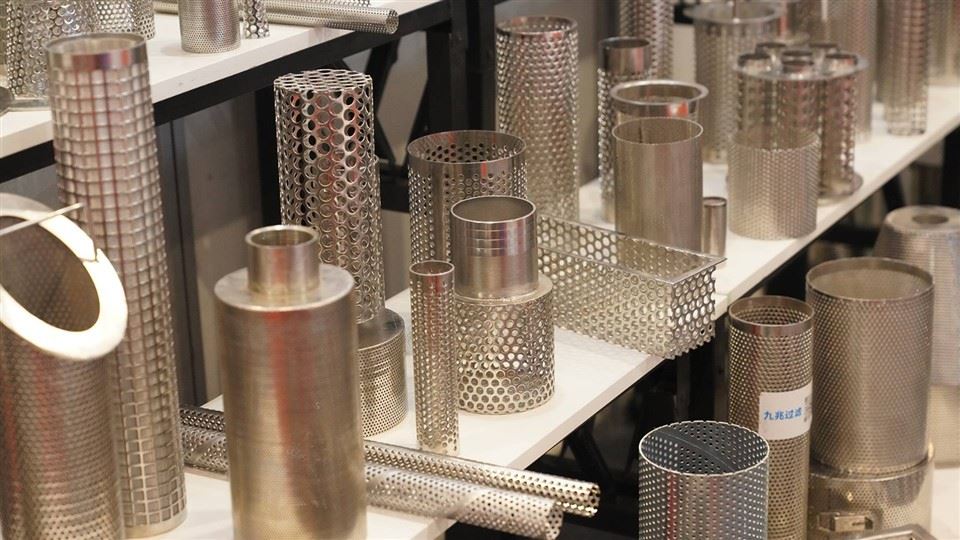

The perforated plate composite mesh filter cartridge is an efficient filtering component, and below is a detailed introduction to it:
I. Definition and Structure
The perforated plate composite mesh filter cartridge is a sintered mesh filter cartridge formed by sintering a perforated plate and multiple layers of stainless steel wire mesh together. This filter cartridge combines the strength of the perforated plate with the filtration performance of the multi-layer stainless steel wire mesh, possessing high compressive and mechanical strength.
II. Main Characteristics
High Strength: Due to the support of the perforated plate, the compressive and mechanical strength of the sintered mesh are significantly enhanced, allowing it to withstand greater working pressures and fluid impacts.
High Precision: The multi-layer stainless steel wire mesh undergoes special layered pressing and vacuum sintering to form a uniform and ideal filtration structure, capable of exerting uniform surface filtration performance for filtration particle sizes ranging from 2 to 200 micrometers.
Easy to Clean: The surface filtration structure with countercurrent cleaning effect makes filter cartridge cleaning simple and convenient, extending its service life.
Corrosion Resistance: The filter cartridge material is usually stainless steel, possessing good corrosion resistance and suitability for filtering various corrosive media.
III. Application Scope
The perforated plate composite mesh filter cartridge is widely used in industries such as food and beverages, water treatment, power plant dust removal, pharmaceuticals, and membranes, and can be used to filter liquids, gases, and solid particles. Specific application scenarios include but are not limited to:
Food and Beverage Industry: Used in the production processes of fruit juices, beer, dairy products, etc., for filtering out impurities and microorganisms.
Water Treatment Industry: Used for purifying tap water, industrial wastewater, swimming pool water, etc., to remove suspended solids, organics, and bacteria.
Power Plant Dust Removal: Used in power plant flue gas dust removal systems to capture and remove solid particles in the flue gas.
Pharmaceutical Industry: Used in the filtration process during pharmaceutical production to ensure the purity and safety of drugs.
IV. Customization and Processing
The thickness, size, and structure of the perforated plate composite mesh filter cartridge can be customized according to user requirements. Standard materials include stainless steel grades such as SS304, SS304L, SS316, and SS316L, and special alloy materials such as Hastelloy C-276 and Monel 400 can also be ordered for customers. Standard sizes are usually 500x1000mm, 600x1200mm, etc., but can also be customized according to user needs.
V. Maintenance and Care
To ensure the normal operation of the perforated plate composite mesh filter cartridge and extend its service life, regular maintenance and care are required. Specific measures include:
Regularly check the clogging situation of the filter cartridge and promptly clean or replace those severely clogged.
Avoid exposing the filter cartridge to excessive pressure and impact to prevent damage to its structure.
When storing the filter cartridge, place it in a dry, ventilated area away from direct sunlight to prevent it from getting damp or aging.
In summary, the perforated plate composite mesh filter cartridge plays an important role in multiple industries due to its high strength, high precision, ease of cleaning, and corrosion resistance. Through customization and processing, it can meet the filtration needs of different users.
