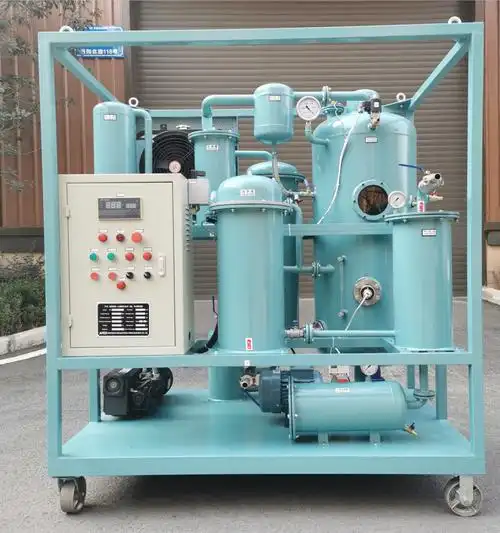

Hydraulic Oil Vacuum Filtration Machine is a device used for processing hydraulic oil. Its main function is to remove moisture, gases, solid impurities, and chemical residues from the hydraulic oil through vacuum and filtration technologies, thereby restoring or enhancing the quality of the hydraulic oil. Below is a detailed introduction to the Hydraulic Oil Vacuum Filtration Machine:
I. Working Principle
The working principle of the Hydraulic Oil Vacuum Filtration Machine is based on dehydration, degassing, and filtration technologies under vacuum conditions. Specifically, the equipment first heats the hydraulic oil through the heating system to reduce its viscosity and improve its fluidity. Then, in the vacuum atomization system, the oil is atomized and undergoes dehydration and degassing treatments under vacuum conditions. Meanwhile, three sets of filters can remove various fine solid impurities, while special regenerative adsorbents can further eliminate chemical residues in the oil. Finally, the purified hydraulic oil passes through components such as condensation and adsorption regeneration, and is collected and stored in designated containers.
II. Main Components
The Hydraulic Oil Vacuum Filtration Machine is mainly composed of the following major components:
Heating System: Used to heat the hydraulic oil, reducing its viscosity and improving its fluidity.
Filtration System: Includes filters and regenerative adsorbents, used to remove solid impurities and chemical residues from the hydraulic oil.
Vacuum Atomization System: Atomizes the hydraulic oil under vacuum conditions to achieve dehydration and degassing functions.
Oil Supply System: Responsible for conveying the hydraulic oil to be processed into the equipment and transporting the processed hydraulic oil to storage containers.
Electrical Control System: Used to control the startup, shutdown, and coordination of various components of the equipment.
III. Operating Procedures
When using the Hydraulic Oil Vacuum Filtration Machine, the following steps should be followed:
Install the equipment horizontally on a stable level surface and connect it to the power supply.
Check whether the vacuum pump oil needs to be replaced or supplemented, ensuring it reaches the oil level indicator in the observation window.
Check whether any parts of the machine are loose or falling off, ensuring no foreign objects have fallen in.
Before starting the equipment, perform phase sequence checks and checks on the direction of the vacuum pump and oil pump.
Start the vacuum pump and stop vacuuming when the vacuum gauge pointer reaches the specified range.
Connect the inlet and outlet oil pipes, open the manual pressure relief valve (if the automatic pressure relief valve fails), and then start the vacuum pump and oil pump for filtration treatment.
Adjust the vacuum degree and heating temperature as needed to ensure the normal operation of the equipment.
During the processing, regularly check the working status of each component to ensure there are no leaks or abnormalities.
When stopping the machine, first turn off the heating system and wait for the oil temperature to drop before turning off the vacuum pump, oil pump, and other components.
IV. Applications and Advantages
The Hydraulic Oil Vacuum Filtration Machine is widely used in various situations requiring hydraulic oil processing, such as machinery manufacturing, automobile manufacturing, aerospace, and other fields. Its advantages are mainly reflected in the following aspects:
Efficient Purification: Capable of removing moisture, gases, solid impurities, and chemical residues from hydraulic oil, improving its quality.
Energy-saving and Environmentally Friendly: Achieves purification through vacuum and filtration technologies without the need for chemical additives, posing no pollution to the environment.
Easy Operation: The equipment has a compact structure, is easy to operate, and is convenient for maintenance and servicing.
Safe and Reliable: The equipment has multiple safety protection measures, such as overvoltage protection and overcurrent protection, ensuring safety during use.
V. Precautions
When using the Hydraulic Oil Vacuum Filtration Machine, the following precautions should be taken:
Regularly check whether the parts of the equipment are loose or damaged to ensure the equipment is in good working condition.
Regularly check the quality and quantity of the vacuum pump oil, and replace or supplement it in a timely manner.
During processing, observe the working status of each component, and stop the machine immediately if any abnormalities are found.
When stopping the machine, first turn off the heating system and wait for the oil temperature to drop before turning off other components to ensure the safety and service life of the equipment.
In summary, the Hydraulic Oil Vacuum Filtration Machine is an efficient, energy-saving, environmentally friendly, and easy-to-operate device that can significantly improve the quality of hydraulic oil and extend its service life.
