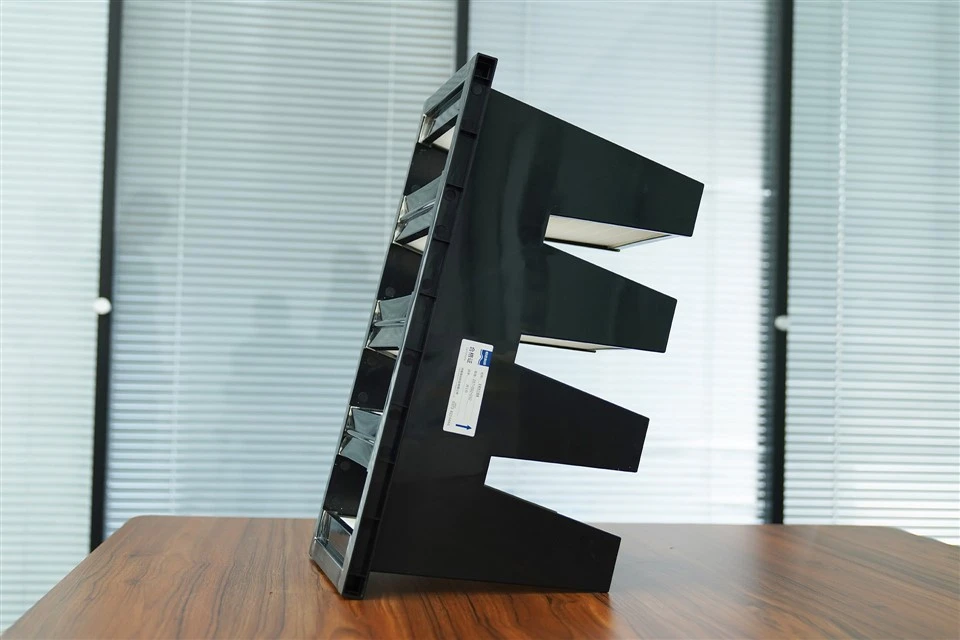

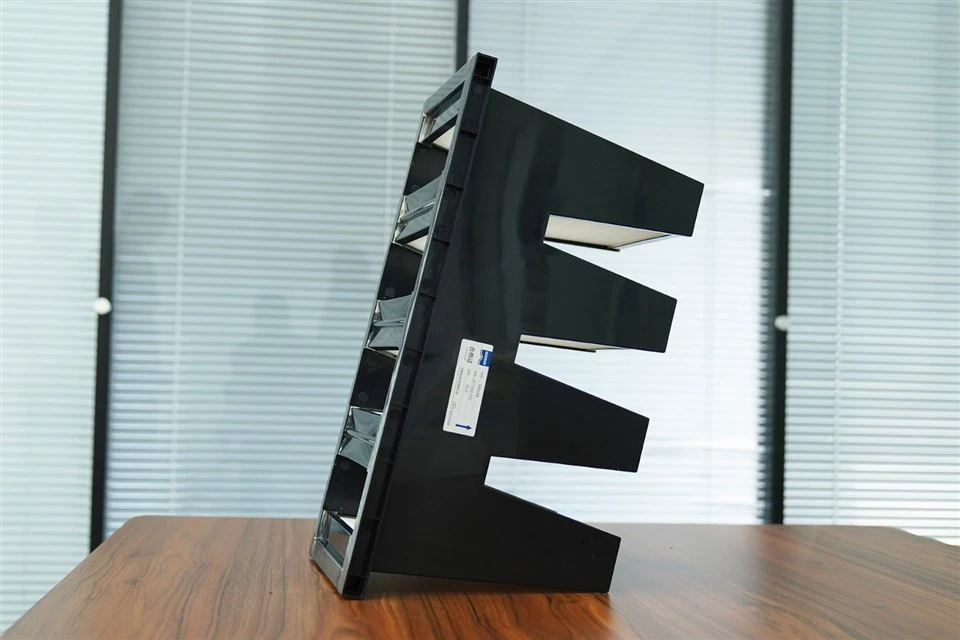

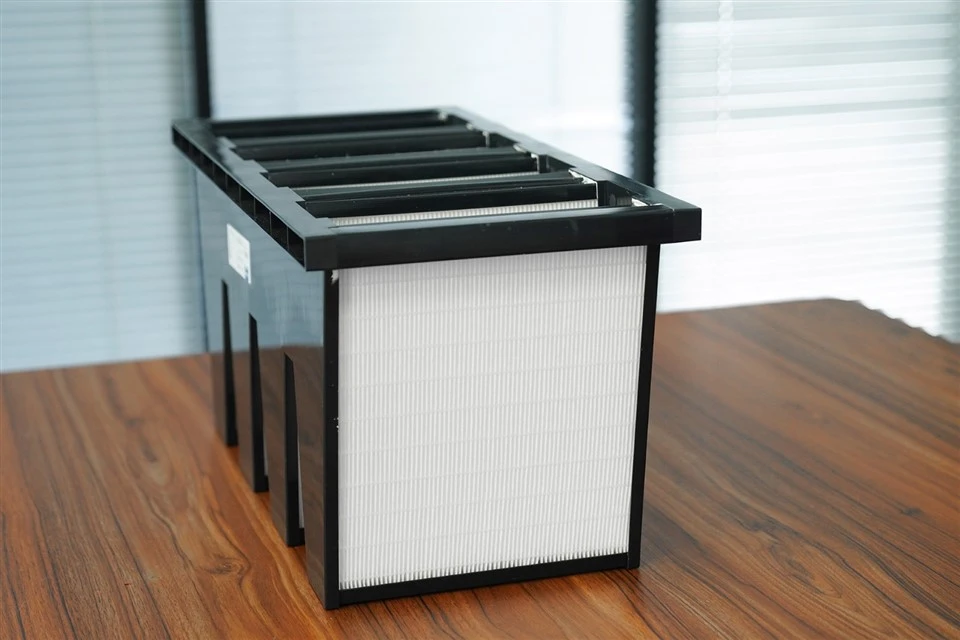

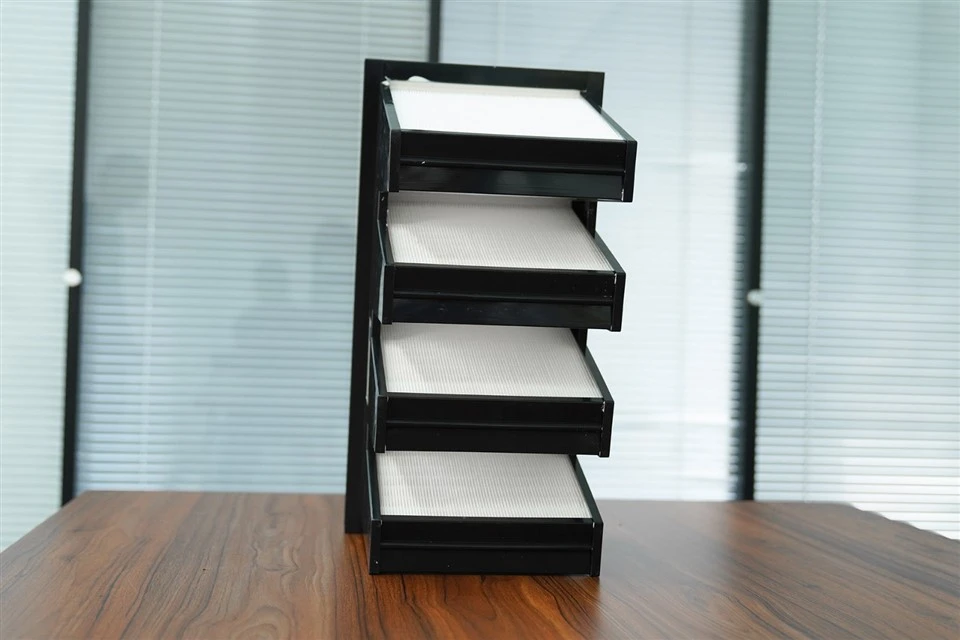

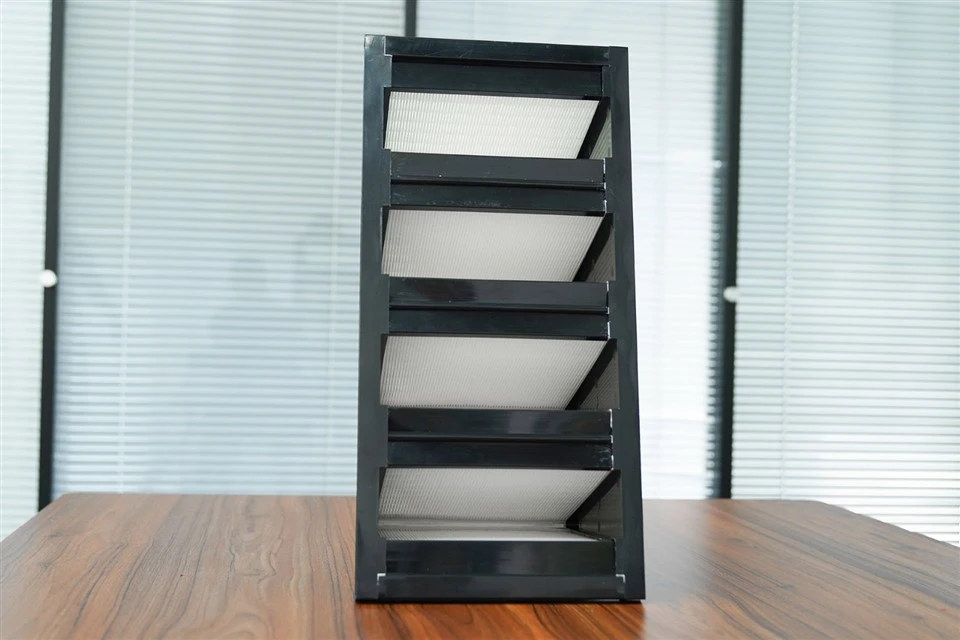

The Compact Rigid Cassette Filter V Bank HEPA Big Dust Collector GI Frame is a high-performance air filtration system designed for industrial and commercial applications requiring superior dust collection and air purification. Below is a detailed breakdown of its components, features, benefits, and applications:
1. Key Components & Structure
Compact Rigid Cassette Filters:
Made of durable, high-density media (e.g., synthetic fibers, fiberglass, or nano-fiber) for efficient particle capture.
Rigid construction prevents collapse under high airflow or pressure, ensuring long-term stability.
Available in MERV 14–16 or HEPA (H13–H14) grades for fine particulate filtration.
V-Bank Design:
Filters are arranged in a V-shaped configuration to maximize surface area and dust-holding capacity.
Reduces pressure drop, improving energy efficiency and extending filter life.
Compact footprint saves space compared to traditional panel filters.
HEPA Filtration:
High-Efficiency Particulate Air (HEPA) filters capture 99.97%–99.995% of particles as small as 0.3 microns.
Ideal for critical environments like cleanrooms, hospitals, and pharmaceutical manufacturing.
Big Dust Collector GI Frame:
Heavy-duty galvanized iron (GI) frame provides structural integrity and corrosion resistance.
Designed to handle high dust loads and harsh industrial conditions.
Modular construction allows for easy scaling and customization.
2. Features & Benefits
High Dust-Holding Capacity:
The V-bank design and rigid media trap large volumes of dust without clogging, reducing maintenance frequency.
Energy Efficiency:
Low pressure drop minimizes fan energy consumption, lowering operational costs.
Long Service Life:
Durable materials and rigid construction extend filter lifespan, even in demanding environments.
Space-Saving Design:
Compact footprint makes it suitable for facilities with limited space.
Easy Maintenance:
Modular cassettes can be replaced individually without shutting down the entire system.
Versatile Applications:
Suitable for both coarse and fine dust collection, as well as gas-phase contaminants (with optional carbon filters).
3. Applications
Industrial Manufacturing:
Metal processing, welding, grinding, and foundry operations.
Pharmaceutical and food processing (where cleanliness is critical).
Commercial Buildings:
Large-scale HVAC systems in malls, airports, and office complexes.
Specialized Environments:
Cleanrooms, laboratories, and hospitals requiring HEPA-grade filtration.
Energy & Utilities:
Power plants, cement factories, and waste incineration facilities.
4. How to Choose the Right Model
Determine Filtration Grade:
MERV 14–16: For general industrial dust collection.
HEPA (H13–H14): For critical applications requiring near-zero particle escape.
Assess Airflow Requirements:
Select a model with adequate CFM (cubic feet per minute) capacity for your system.
Check Dust Load:
Heavy-duty applications (e.g., metalworking) require higher dust-holding capacity.
Consider Environmental Factors:
Corrosive environments need stainless steel or epoxy-coated frames.
High-temperature applications may require special media (e.g., glass fiber).
Space Constraints:
Opt for a compact V-bank design if floor space is limited.
5. Installation & Maintenance
Installation:
Follow manufacturer guidelines for proper alignment and sealing to prevent bypass.
Ensure the GI frame is securely mounted to handle vibrations.
Maintenance:
Monitor pressure drop using gauges; replace filters when the differential pressure reaches recommended levels.
For HEPA filters, perform regular integrity tests (e.g., DOP/PAO test) to ensure performance.
Clean or replace pre-filters frequently to extend the life of primary filters.
6. Comparison with Alternatives
| Feature | Compact Rigid Cassette V Bank HEPA | Traditional Panel Filters | Bag Filters |
|---|---|---|---|
| Dust-Holding Capacity | High (V-bank design) | Low | Moderate |
| Pressure Drop | Low | High | Moderate |
| Space Efficiency | High (compact) | Low | Moderate |
| Maintenance | Easy (modular cassettes) | Labor-intensive | Moderate |
| Cost | Higher initial cost, lower long-term | Cheap but frequent replacement | Moderate |
Conclusion
The Compact Rigid Cassette Filter V Bank HEPA Big Dust Collector GI Frame is a robust, high-efficiency solution for demanding dust collection and air purification needs. Its modular design, energy efficiency, and HEPA-grade filtration make it ideal for industrial, commercial, and critical environments. Proper selection, installation, and maintenance ensure optimal performance and cost savings over time.
For specific product recommendations or technical support, consult with an industrial air filtration expert or the manufacturer directly.
