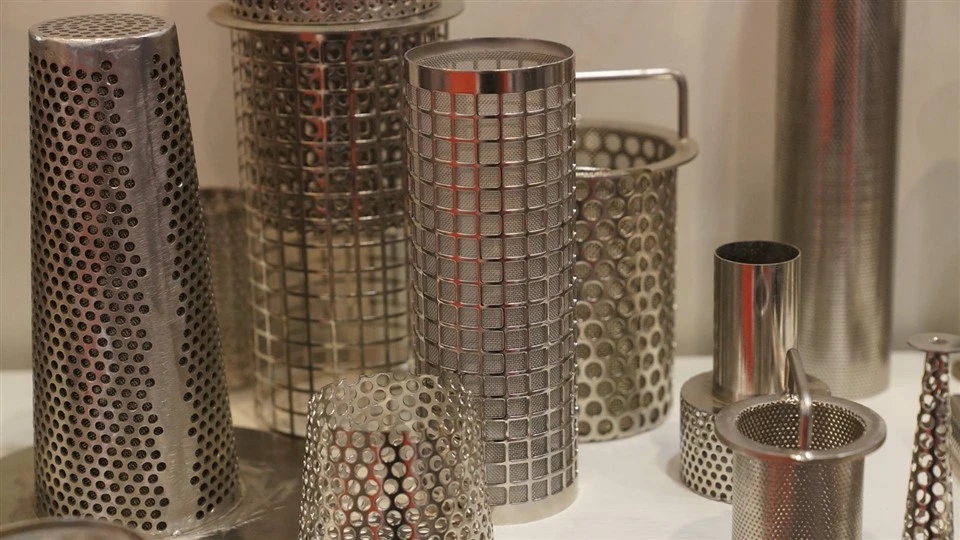

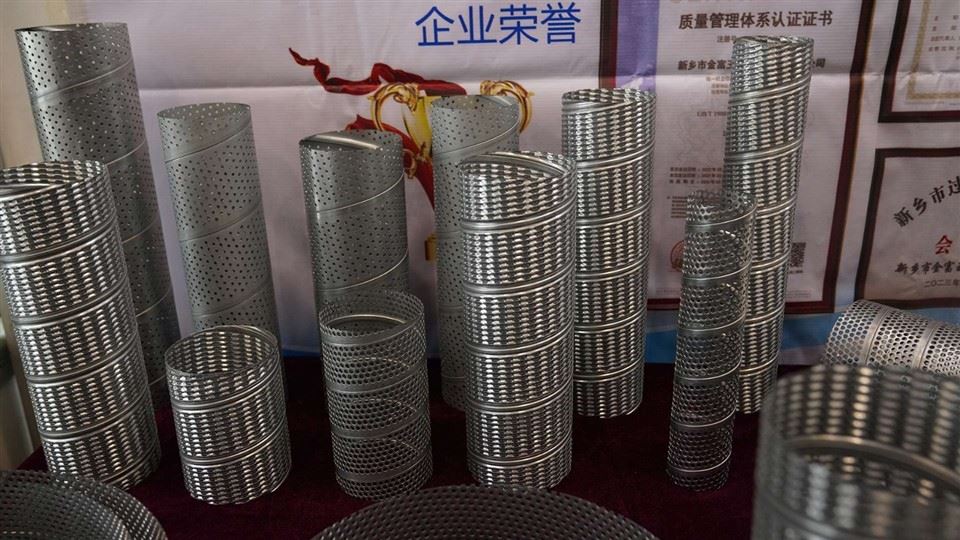

Punched Plate Composite Mesh Filter Element
The punched plate composite mesh is a sintered integration of a punched plate made of standard 304 material and several layers of square mesh (or close-meshed wire cloth), with the number of layers and mesh size tailored to different operating conditions and applications. Being a sintered integration of a pressure-resistant framework and filter mesh, it exhibits superior backwashing effects and low pressure drop losses, making it widely used in water treatment, beverages, food, metallurgy, chemicals, and pharmaceuticals. Materials for stainless steel punched plates include 2-nickel and 4-nickel stainless steel grades such as 201, 302, 304, 316, 304L, and 316L.
The punched plate is made of 304 material, while others are 316L.
Products of special shapes can be produced according to different requirements.
Punched Plate Composite Mesh
Wide Range of Filtration Precision: Reliable filtration performance is available from 1μ to 100μ.
Stable Filtration Precision: Protected by two layers of wire mesh above and below, combined with the sintering process of diffusion solid solution, the filter layer mesh holes are not prone to deformation.
Good Strength: With the fourth and fifth layers providing support, it has high pressure resistance and mechanical strength.
Easy to Clean: Using surface filtration material, it is easy to clean and particularly suitable for backwashing.
High Temperature Resistance: It can withstand temperatures up to 480℃.
Corrosion Resistance: Made of SUS316L material, it has high corrosion resistance.
Easy to Process: Suitable for cutting, bending, punching, stretching, welding, and other processing conditions.
Specifications
Characteristics: The mesh surface is flat, smooth, beautiful, durable, and versatile.
Specifications: Coil thickness ranges from 0.2mm to 0.7mm, length from 1m to 20m, and aperture size greater than 0.8mm to 10mm; flat plate thickness from 0.3mm to 30mm, size up to 1-2m or 1220*2400 (special sizes can be customized), with a minimum punchable aperture of 0.6mm.
Manufacturing: Produced by punching.
Applications: Punched plate composite sintered mesh is a high-flow, easy-to-clean filtration material made by vacuum sintering a special combination of punched plates and metal wire mesh according to different operating pressures, filtration precision, and other conditions. It is mainly used in mining, filtration, pharmaceuticals, grain screening, indoor sound insulation, noise reduction, ventilation in grain depots, mechanical protection, and other fields.
